- Technical Specifications
- Product Details
SPECIFICATIONS | P3.91 500*500 | P3.91 500*1000 |
Pixel Pitch | 3.91mm (H*V) | 3.91mm (H*V) |
Pixel Density | 65,536dots/m2 | 65,536dots/m2 |
LED Type | SMD2020 black | SMD2020 black |
LED Configuration | 1R1G1B | 1R1G1B |
LED Life Span | ≥100,000 Hours | ≥100,000 Hours |
Brightness | ≥3500CD/m2 | ≥3500CD/m2 |
Contrast | 3000:01:00 | 3000:01:00 |
View Angle | 140°(horz.), 140° (vert.) | 140°(horz.), 140° (vert.) |
Best Viewing Distance | 3~18m | 3~18m |
Gray Scale | ≥14(bit) | ≥14(bit) |
Scan Mode | 1/16 Scan | 1/16 Scan |
Cabinet Resolution | 128x128 pixels | 128x256 pixels |

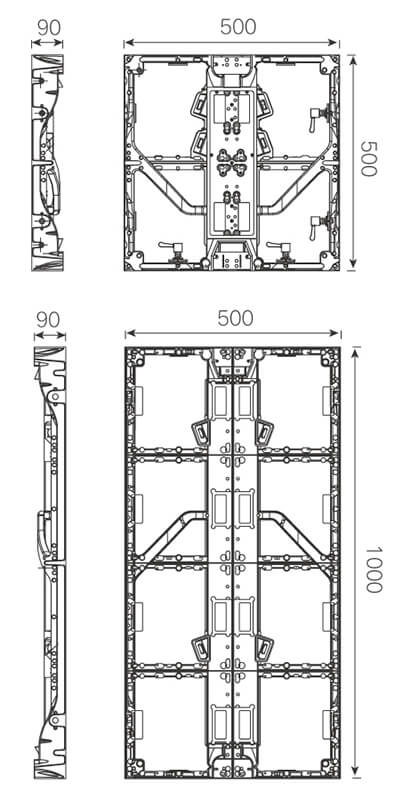

Cabinet Size | 500*500*90mm | 500*1000*90mm |
Cabinet Weight | 7 kg | 12.8 kg |
Cabinet Material | Magnesium | Magnesium |
Module Quality | 4pcs | 8pcs |
Module Size | 250mm*250mm | 250mm*250mm |
Module Resolution | 64*64 pixels | 64*64 pixels |
Power Consumption | 200W/Cabinet Max. | 400W/Cabinet Max. |
Input Voltage | AC110-220V/50-60HZ | AC110-220V/50-60HZ |
Output Voltage | 5V60A | 5V60A |
Frame rate | 50/60Hz | 50/60Hz |
Refresh Rate | ≥1920Hz | ≥1920Hz |
Operating Temp/Humidity | -30~+60℃/10~90%RH | -30~+60℃/10~90%RH |
MTBF | 5000Hours | 5000Hours |
IP Rating Front/Rear: | IP31/IP31 | IP31/IP31 |
Control Distance | UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km | UTP CAT5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km |
PC Operating System | Windows XP/Win 7/8/10 | Windows XP/Win 7/8/10 |
