- Technical Specifications
- Product Details

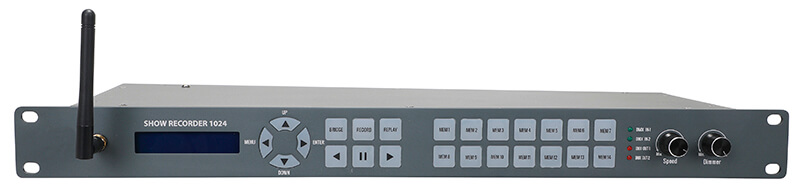

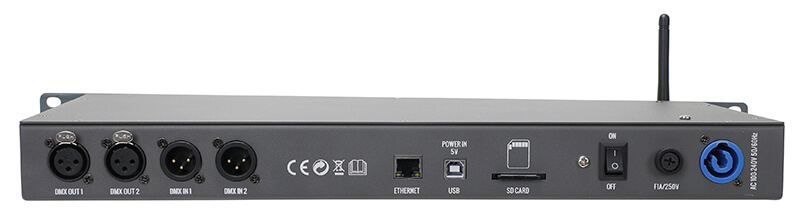

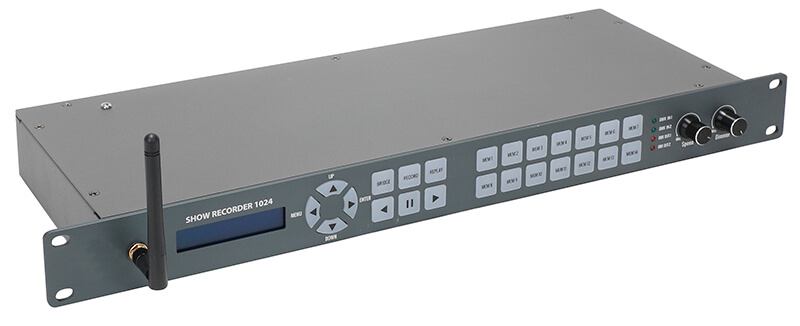

Order code: SR-1024
Supports ArtNet and DMX
1024 channels DMX in & out
Real-time or step-by-step record from DMX/Artnet (via Lan or WiFi)
8 Memories and each up to 20 hours can be stored in SD card
Replay can run in solo or loop mode
Replay can run on iPad/iPhone via TouchOSC
DMX input to Arnent output via Lan cable
Artnet input via wifi to Artnet output via Lan cable
Artnet input via Lan cable to 2 DMX outputs
Artnet input via wifi to 2 DMX outputs
DMX Merger
32G SD card included
Power consumption: 6w max.
Power In: AC 100-240V 50-60Hz
Dimensions: 482 x 147 x 44 mm (1U rack mount)
Weight: 2 kg
