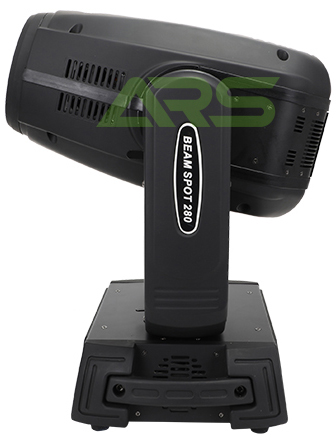

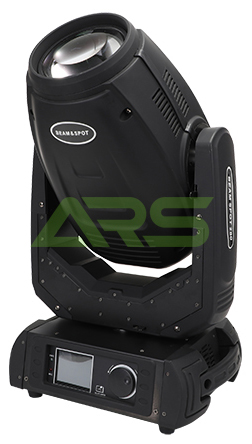

BSW-28012R BSW 3in1
- Technical Specifications
- Product Details
LIGHT SOURCE
Lamp: 280W 10R lamp
Lamp average lifespan: 2,000hrs
Color temperature: 8,000K
OPTICS
Beam angle: 3.8- 20°motorized zoom
High quality optic system makes super brightness
COLORS & GOBOS
Color wheel: 13 colors + white, rainbow effect
Gobo wheel 1: 14 gobos + open, static
Gobo wheel 2: 9 gobos + open, rotating
EFFECTS
Dimmer: 0-100% mechanical dimmer
Shutter: 0.3-20 F.P.S, double shutter blades
Focus: Electronic
Frost: 0-100% for wash
Prism: 8-facet circular + 6-facet linear prism, rotating
CONTROL MODE
Control mode: DMX, Auto, Sound, Master/Slave
DMX channels: 16/24 selectable
DMX Data In/Out: XLR 3Pin (XLR 5Pin optional)
Display: touch screen+jog wheel menu
PAN/TILT MOVEMENT
Pan: Max 540°, with 8 or 16 bit resolution
Tilt: Max 270°, with 8 or 16 bit resolution
Automatic Pan/Tilt correction
POWER SUPPLY
Power supply: AC100V-240V, 50-60Hz (auto-ranging)
Power consumption: Max. 420W
RIGGING
2pcs omega brackets with 1/4-turn quick locks
ENVIRONMENT AND PHYSICAL
IP rating: IP20
Environment temp: -20°C-40°C
Dimensions(mm): L365 x W256 x H574
Net weight: 17.5kg
ACCESSORIES
Power input cable included, length 1.2mtr
Power cable: 1.5mm2, PVC
DMX cable not included (optional)
Safety cable not included (optional)
Hanging bracket included (2pcs/pair)
Lamp: 280W 10R lamp
Lamp average lifespan: 2,000hrs
Color temperature: 8,000K
OPTICS
Beam angle: 3.8- 20°motorized zoom
High quality optic system makes super brightness
COLORS & GOBOS
Color wheel: 13 colors + white, rainbow effect
Gobo wheel 1: 14 gobos + open, static
Gobo wheel 2: 9 gobos + open, rotating
EFFECTS
Dimmer: 0-100% mechanical dimmer
Shutter: 0.3-20 F.P.S, double shutter blades
Focus: Electronic
Frost: 0-100% for wash
Prism: 8-facet circular + 6-facet linear prism, rotating
CONTROL MODE
Control mode: DMX, Auto, Sound, Master/Slave
DMX channels: 16/24 selectable
DMX Data In/Out: XLR 3Pin (XLR 5Pin optional)
Display: touch screen+jog wheel menu
PAN/TILT MOVEMENT
Pan: Max 540°, with 8 or 16 bit resolution
Tilt: Max 270°, with 8 or 16 bit resolution
Automatic Pan/Tilt correction
POWER SUPPLY
Power supply: AC100V-240V, 50-60Hz (auto-ranging)
Power consumption: Max. 420W
RIGGING
2pcs omega brackets with 1/4-turn quick locks
ENVIRONMENT AND PHYSICAL
IP rating: IP20
Environment temp: -20°C-40°C
Dimensions(mm): L365 x W256 x H574
Net weight: 17.5kg
ACCESSORIES
Power input cable included, length 1.2mtr
Power cable: 1.5mm2, PVC
DMX cable not included (optional)
Safety cable not included (optional)
Hanging bracket included (2pcs/pair)
