DMX SPLIT-66Way DMX Splitter/Booster
- Technical Specifications
- Product Details

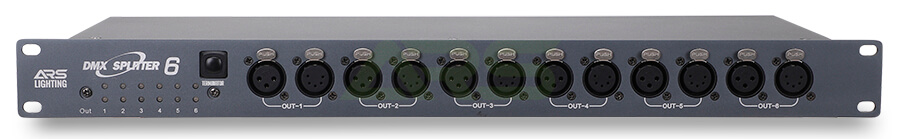

Professional DMX splitter / booster
Chassis 1U 19" rack-mount enclosure
Input & outputs are electrically and optically isolated
DMX INPUT: 1 x 3pin XLR In + 1 x 5pin XLR In
DMX THRU: 1 x 3pin XLR Out + 1 x 5pin XLR Out
DMX OUT: 6 x 3pin XLR Out & 5pin XLR Out
DMX status indicator per channel
Power status indicator
Switchable 120 Ohm terminating resistor for the DMX THRU output jack
Front and rear rack-mount angle attachment options
Power supply: AC 120V or 230V 50-60 Hz
Power consumption: 8W max.
Dimensions: 482 x 44 x 150 mm
Weight: 2.5 kg
Chassis 1U 19" rack-mount enclosure
Input & outputs are electrically and optically isolated
DMX INPUT: 1 x 3pin XLR In + 1 x 5pin XLR In
DMX THRU: 1 x 3pin XLR Out + 1 x 5pin XLR Out
DMX OUT: 6 x 3pin XLR Out & 5pin XLR Out
DMX status indicator per channel
Power status indicator
Switchable 120 Ohm terminating resistor for the DMX THRU output jack
Front and rear rack-mount angle attachment options
Power supply: AC 120V or 230V 50-60 Hz
Power consumption: 8W max.
Dimensions: 482 x 44 x 150 mm
Weight: 2.5 kg
