DMX SPLIT-4B4Way DMX Splitter
- Technical Specifications
- Product Details
DMX signal splitter/booster
1 DMX input to 4 outputs
All ports are optically isolated

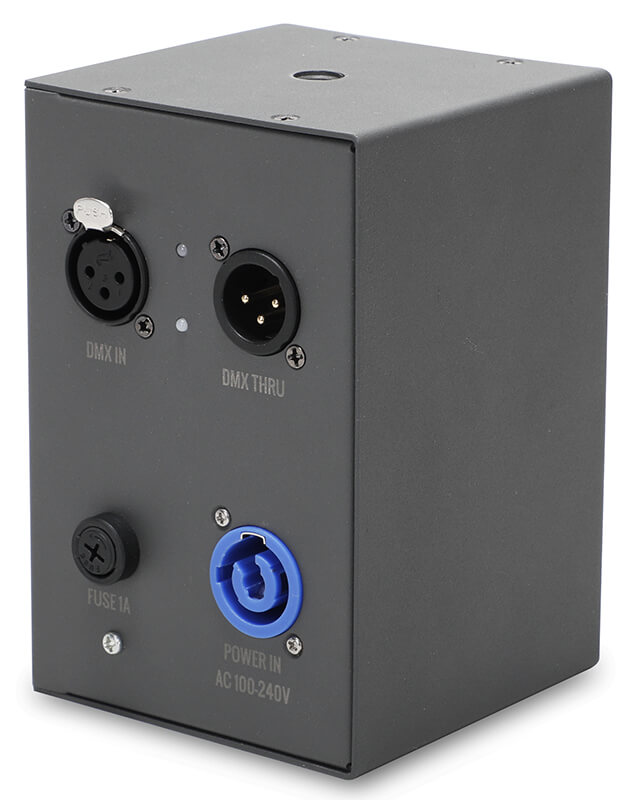

DMX Input: 3pin or 5pin XLR In
DMX Thru & Out: 3pin or 5pin XLR Out
Power and DMX status indicator per channel

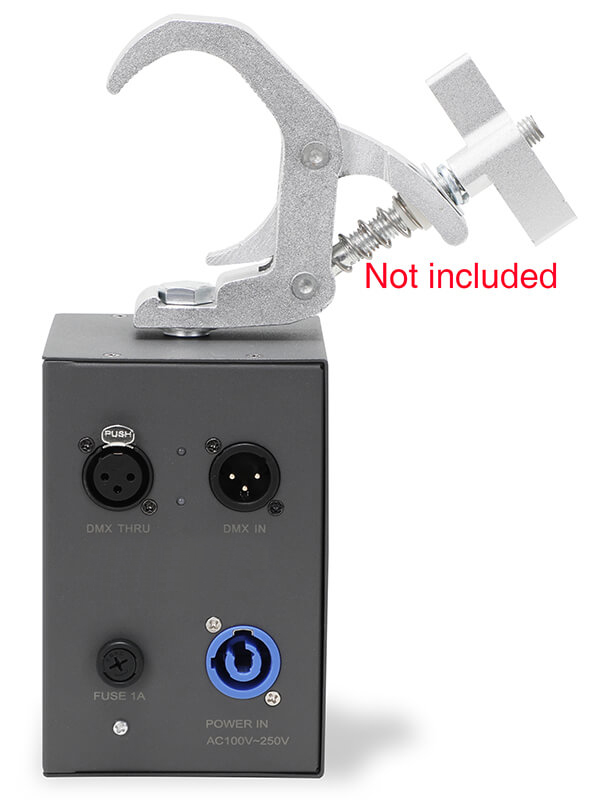

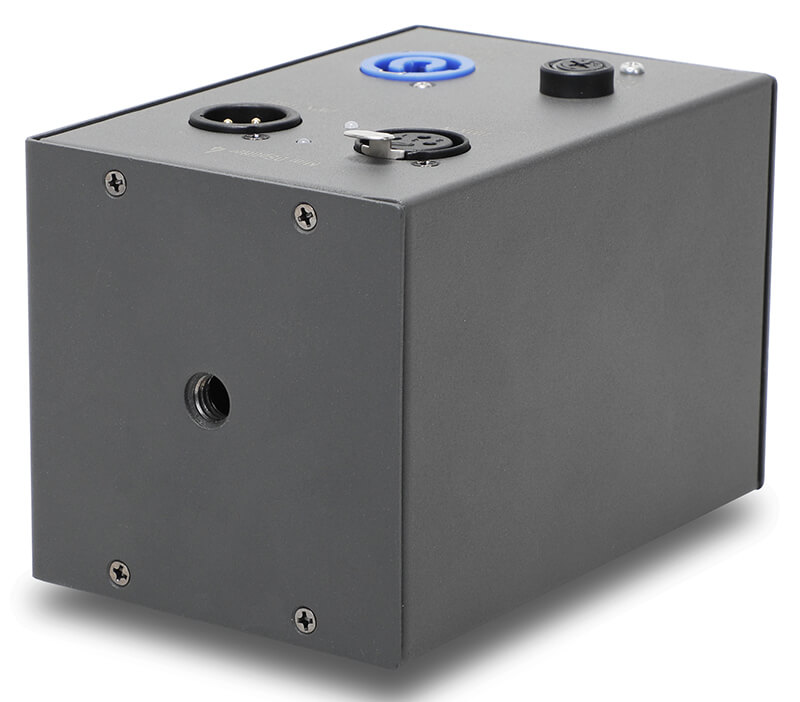

M10 threaded hole for truss mounting
Power supply: AC 100 - 240V 50-60 Hz
Power consumption: 6W max.

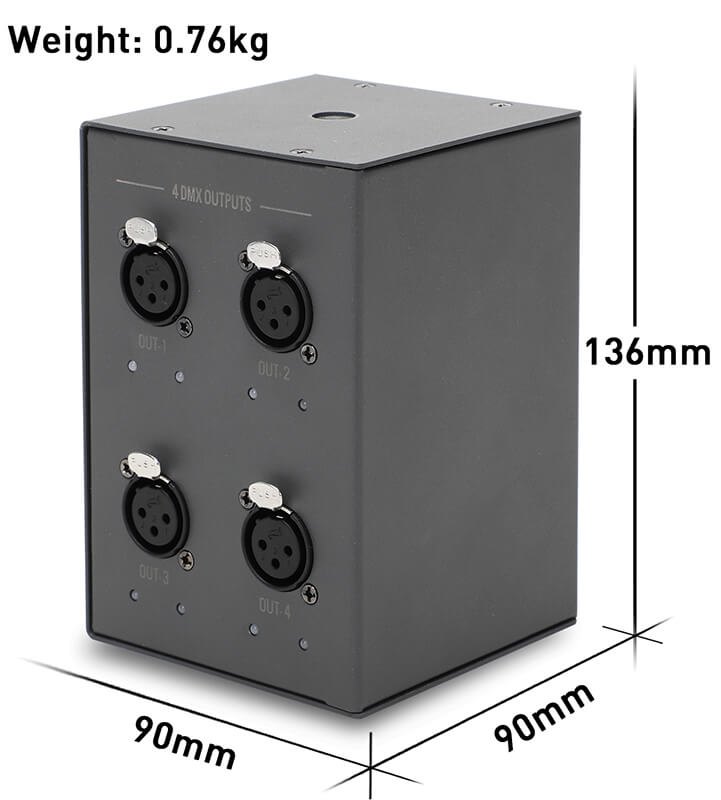

Dimensions: 90 x 90 x 136 mm
Weight: 0.76 kg
1 DMX input to 4 outputs
All ports are optically isolated
DMX Input: 3pin or 5pin XLR In
DMX Thru & Out: 3pin or 5pin XLR Out
Power and DMX status indicator per channel
M10 threaded hole for truss mounting
Power supply: AC 100 - 240V 50-60 Hz
Power consumption: 6W max.
Dimensions: 90 x 90 x 136 mm
Weight: 0.76 kg
