Node 2

$119.00

✅ Palm size, light weight
✅ Supports ArtNet, sACN, RDM and DMX
✅ Powered via USB-C or PoE
✅ Optical and electrical isolation for all outputs

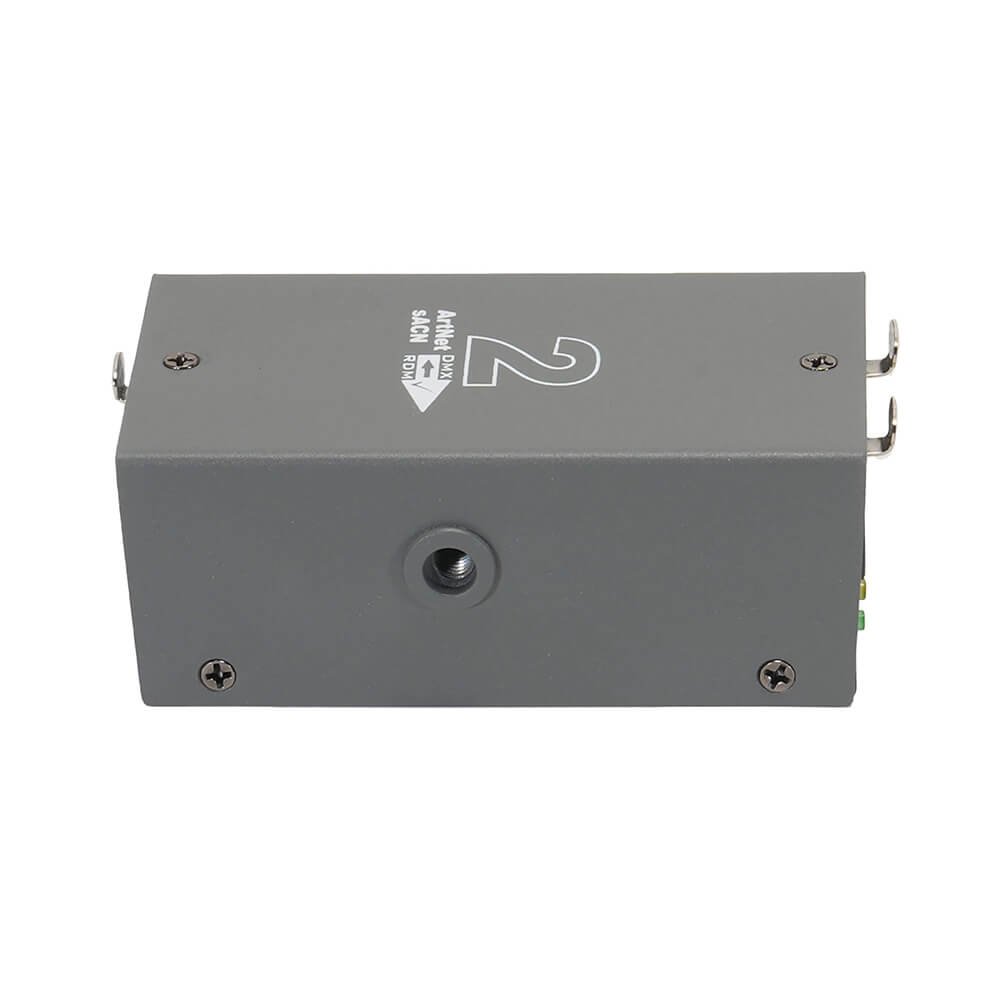

✅ M10 and 3/8″ thread holes for clamp in both side

Shipping: From China. Shipping fee and delivery date to be negotiated.
Secure Payments: We Keep Buyer Information Completely Confidential!
Warranty: All our products are covered by a one-year limited warranty.
Refund: Claim a refund if your order is missing or arrives with quality issue.

Availability: 20 in stock

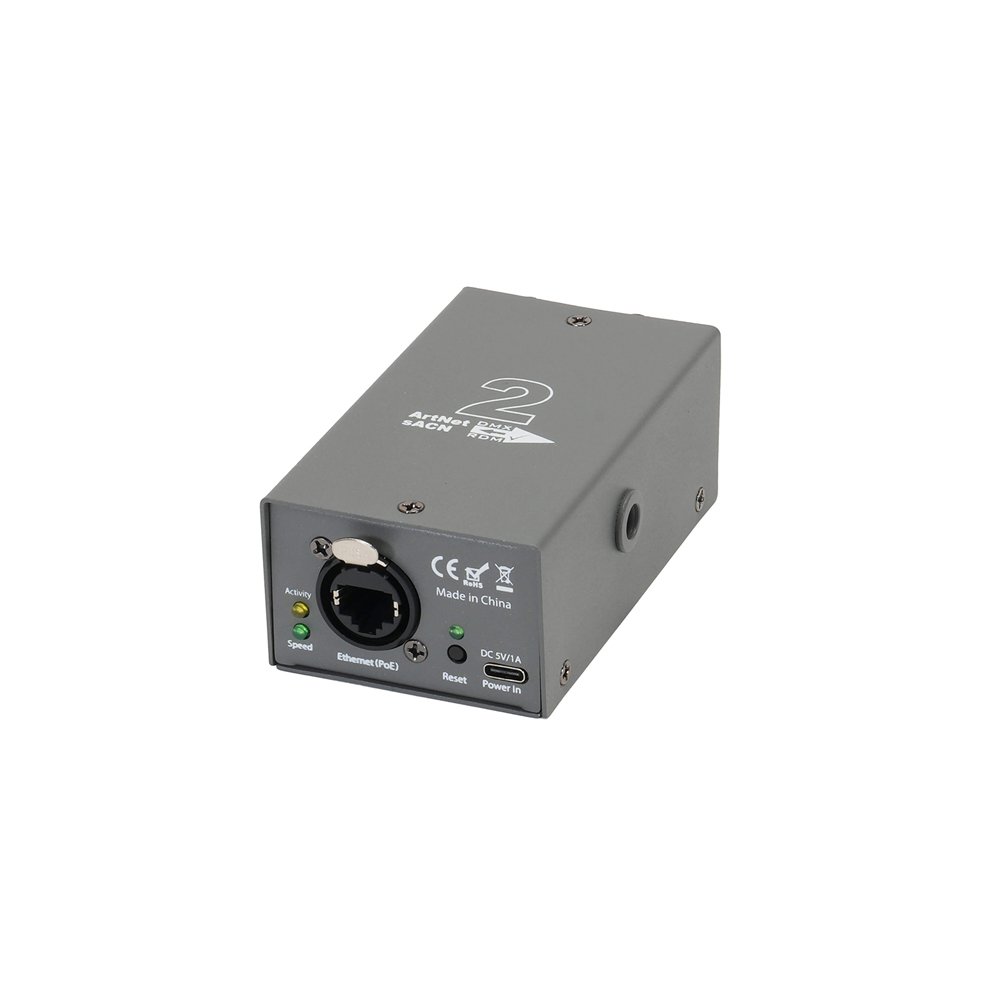

NODE 2 is a multi-purpose Art-Net/sACN node that converts 1 Ethernet cable to 2 DMX universes. Its optical and electrical isolation is ready for any situation. The built-in web-based GUI means no universe/subnet setup. The unit supports Power over Ethernet (POE) or an external power supply. Both outputs can be set to either Art-Net or sACN and NODE 2 functions as an Art-Net to DMX or DMX to Art-Net interface. With M10 and 3/8″ thread holes for clamp in both side, it can be quickly installed into any location.

1024 DMX channels = 2 universes
Supports ArtNet, sACN, RDM, DMX
100M Ethernet RJ45 connector
Art-Net to DMX bi-directional conversion
Optical and electrical isolation ready
Configuration and updating via web browser

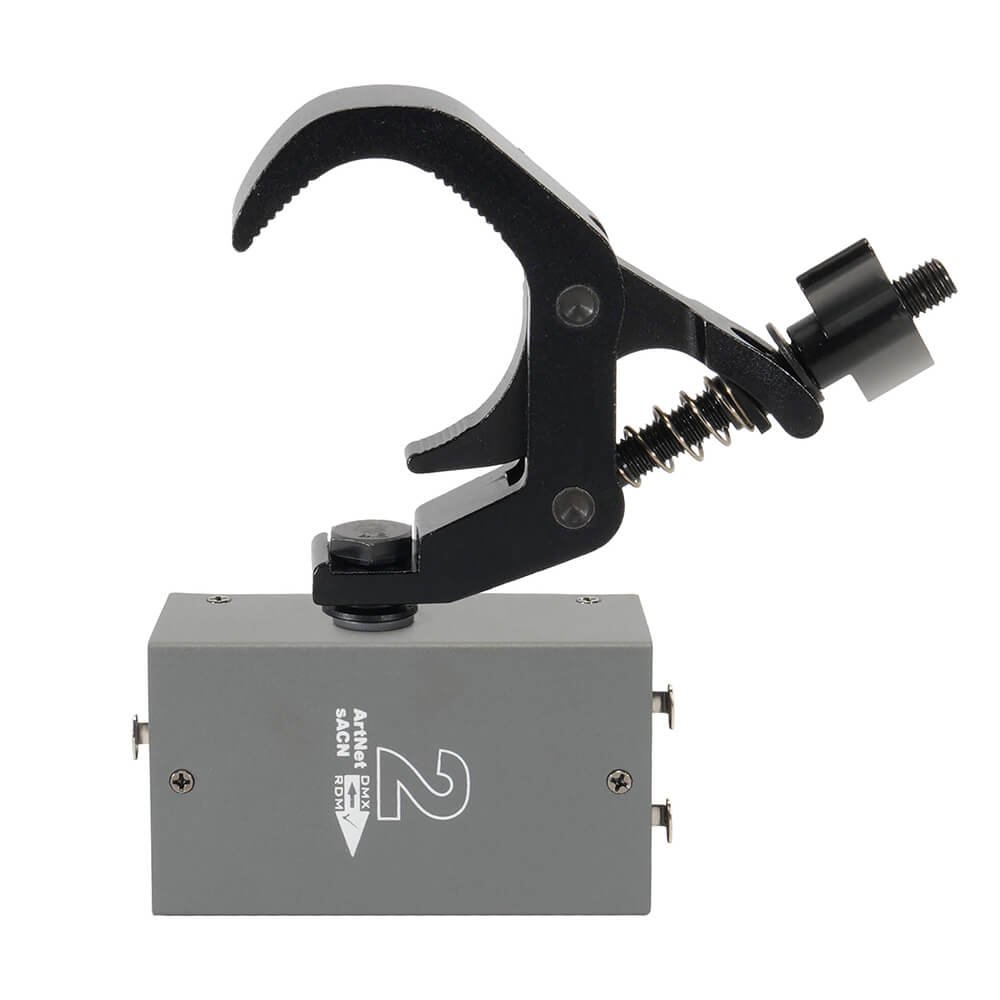

M10 and 3/8″ thread holes for clamp in both side

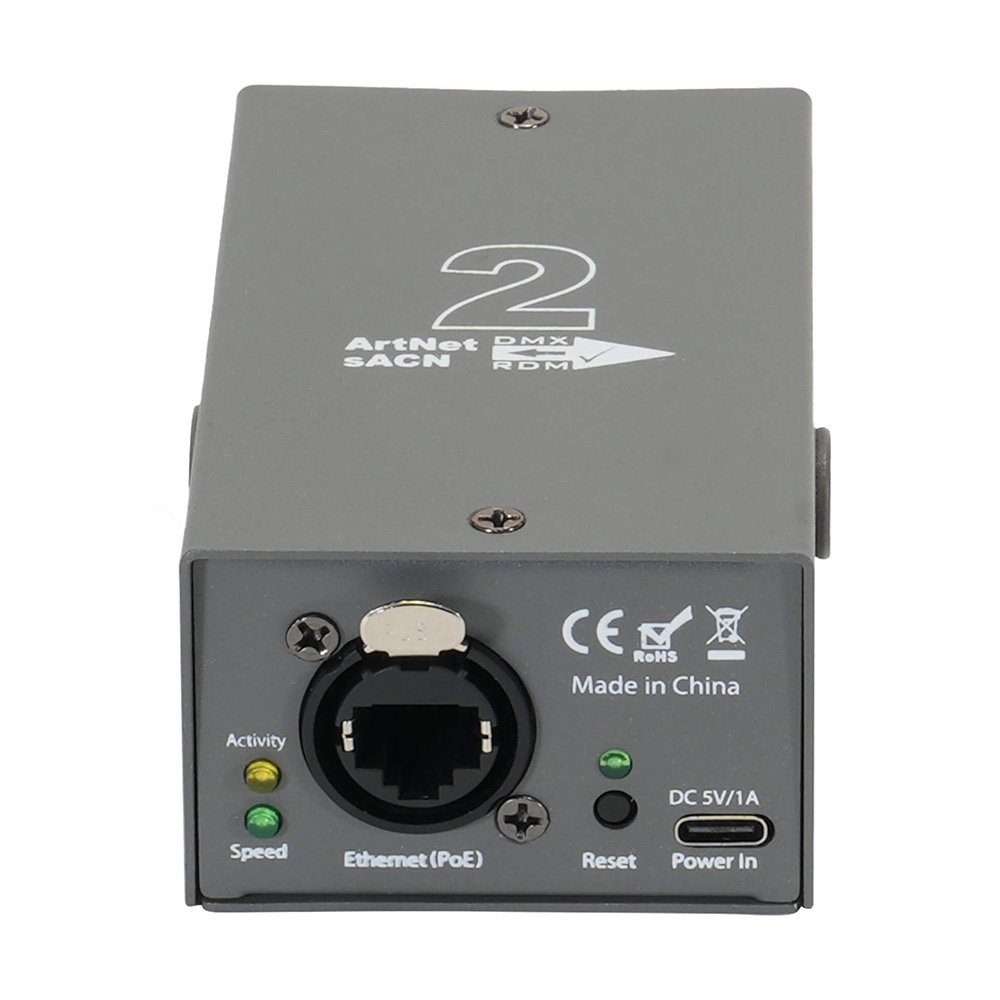

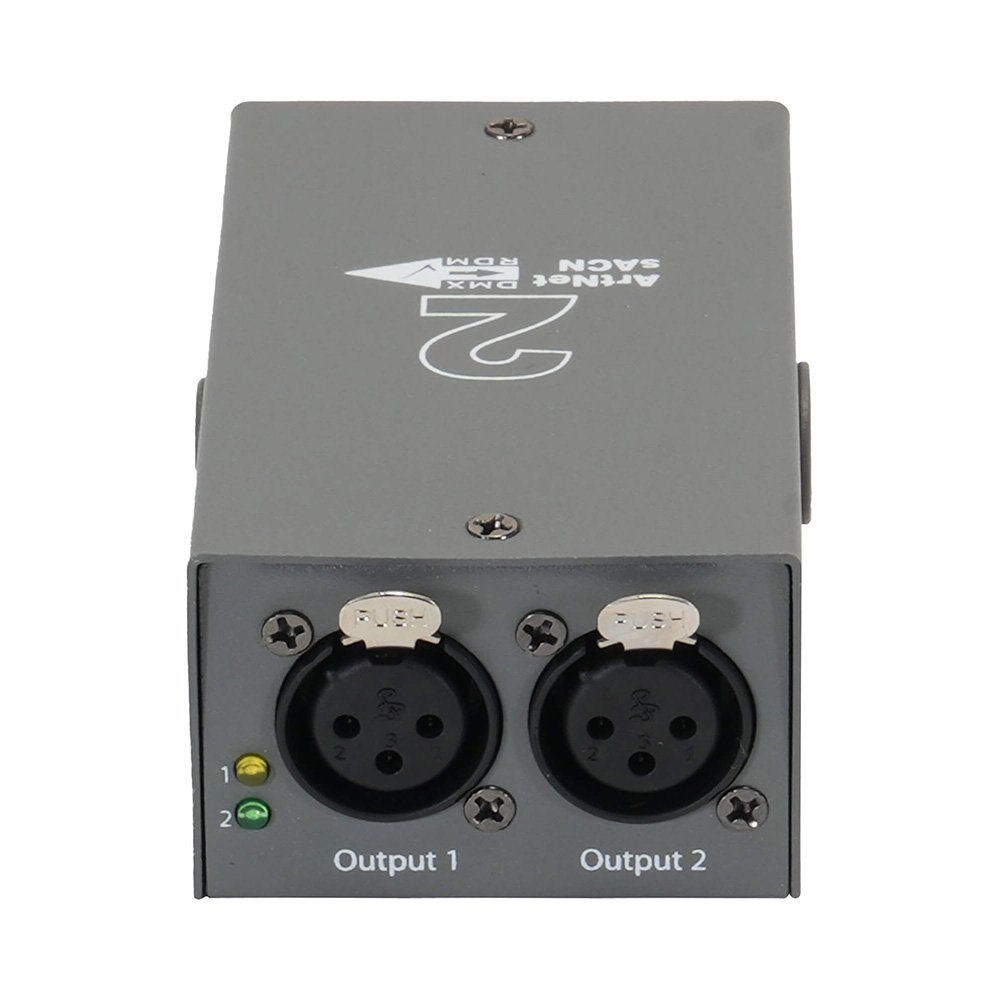

Connections: 2 x 3pin or 5pin XLR OUT, 1 x RJ45 IN
Power Input: 5VDC 1A or PoE
Power consumption: 5W
Default IP: 2.0.0.168
Dimensions: 102 x 60 x 40 mm
Weight: 0.3 kg

Reviews

There are no reviews yet.

Be the first to review “Node 2”

Frequently Asked Question

1. Does the NODE support support both Art-Net and sACN?

Yes it does.

2. Does the NODE support RDM?

Yes it does.

3. Does the NODE support PoE (Power over Ethernet)?

Yes it does.

4. How do I set IP address for this node?

You can set IP address manually or by DHCP via web browser or display (NODE 4).

5. What is DHCP?

DHCP stands for Dynamic Host Configuration Protocol. It’s a network management protocol used to automatically assign IP addresses and other network configuration parameters (like subnet mask, default gateway, and DNS servers) to devices on a network.
Why DHCP is Useful? Without DHCP, every device on a network would need to be configured manually with an IP address. DHCP automates this process, which: Reduces configuration errors, Saves time, Makes it easier to manage large networks.

6. What IP address should I use for an Art-Net network?

The standard Art-Net IP range is 2.x.x.x (e.g., 2.0.0.10) with a subnet mask of 255.0.0.0. However, some setups use the 10.x.x.x range for better compatibility with modern networks.

7. What is the difference between Art-Net and sACN?

Art-Net uses UDP and supports broadcast communication by default.
sACN (Streaming ACN) is another DMX-over-IP protocol that typically uses multicast or unicast, making it more efficient on larger networks.

8. My Art-Net node is not receiving data. What should I check?

– Check the IP address settings (must be in the correct range).
– Ensure the software is sending Art-Net data (use an Art-Net monitor tool).
– Disable firewalls that may block UDP traffic.
– Verify physical connections (Ethernet cables, switches, and routers).
– Confirm the correct universe assignment in both software and the node.

9. Can I control multiple Art-Net nodes from one software?

Yes! Most lighting control software supports multiple nodes by assigning different DMX universes to each.
