LIGHT SOURCE
Main source: 180W RGBL 4in1 LED

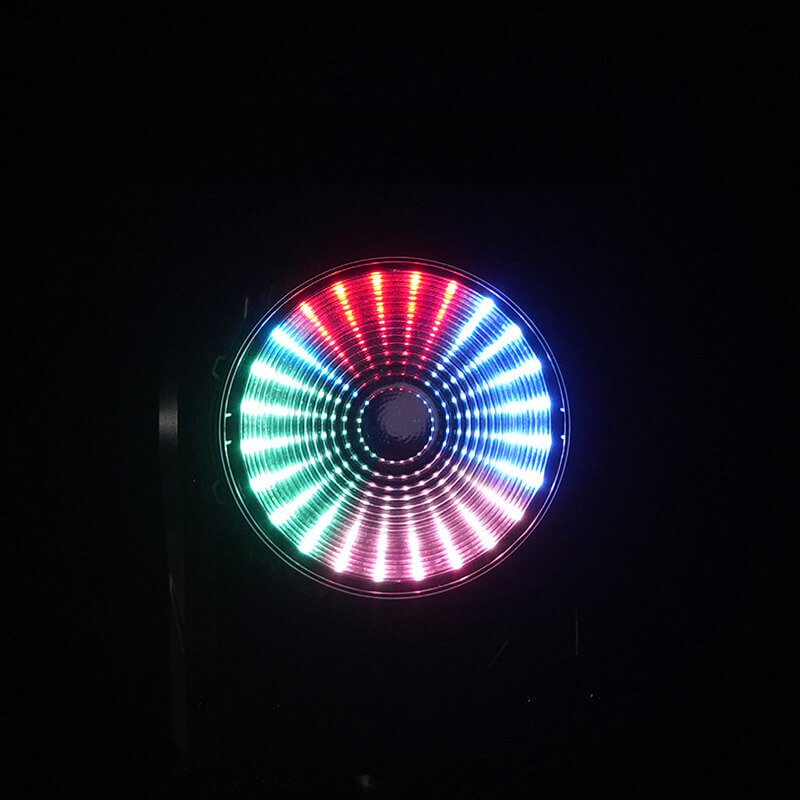

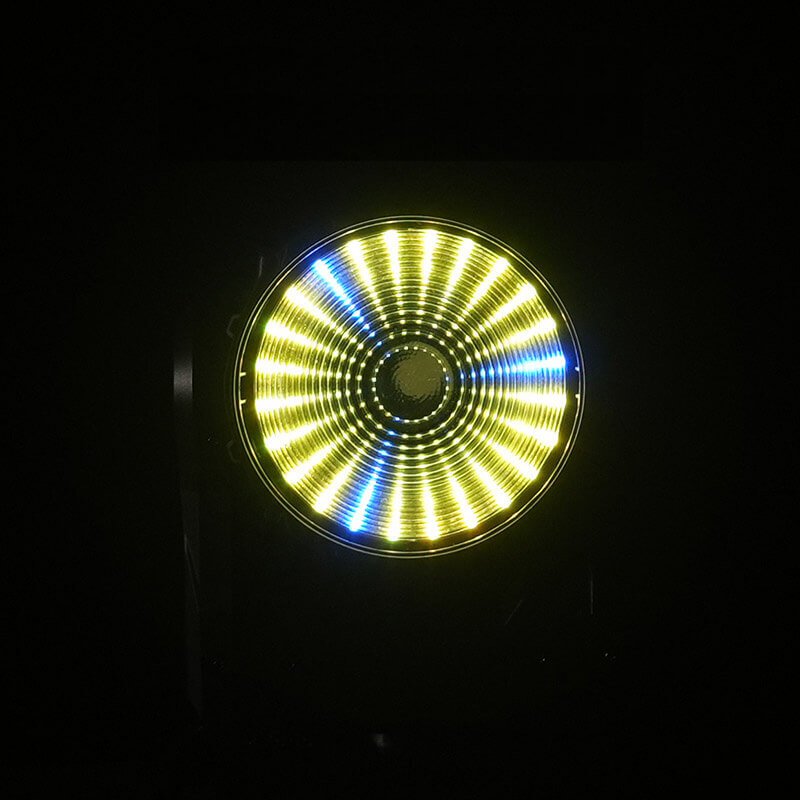

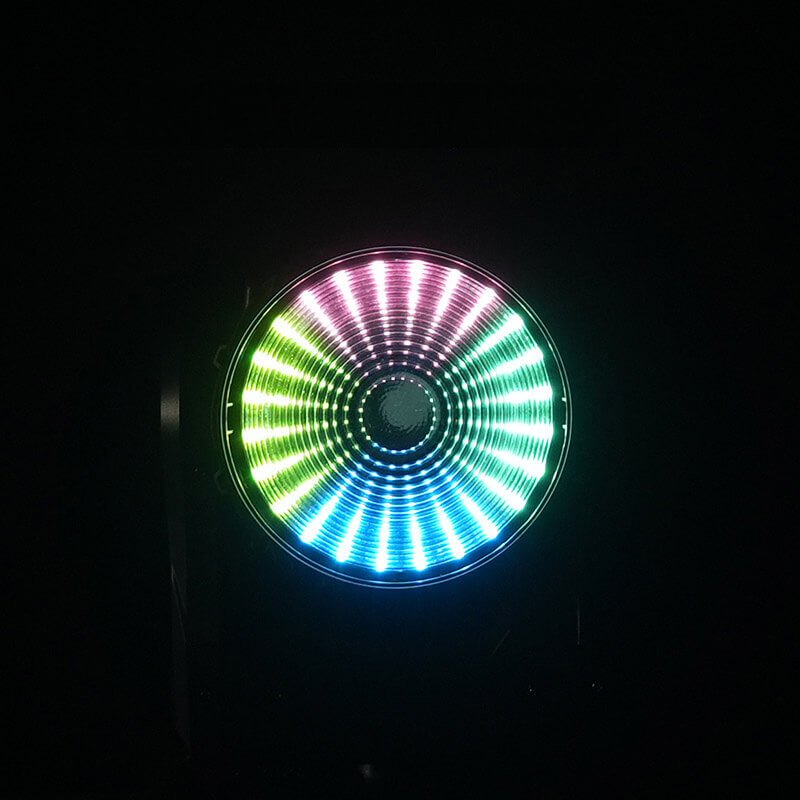

Backlight: 24pcs 0.2W RGB 3in1 LEDs
OPTICS
Beam angle: 5°-30° motorized zoom
Flicker free (refresh rate >4K Hz)
Suitable for TV applications and all video recorded events
Light output (full Bright)@5°: 9,800Lux@5mtr
Light output (full Bright)@30°: 899Lux@5mtr
EFFECTS
Beam, wash, backlight effects
Motorized zoom: 5°-30°
Electronic dimming: 0-100% linear
Electronic strobe: 0-20 flashes/sec.
Built-in rainbow macro, speed adjustable
Built-in patterns chase programs
Built-in effects macro, speed adjustable
CONTROL MODE
Control mode: DMX, auto, sound-activate
DMX channels: 20, 36, 108, 20

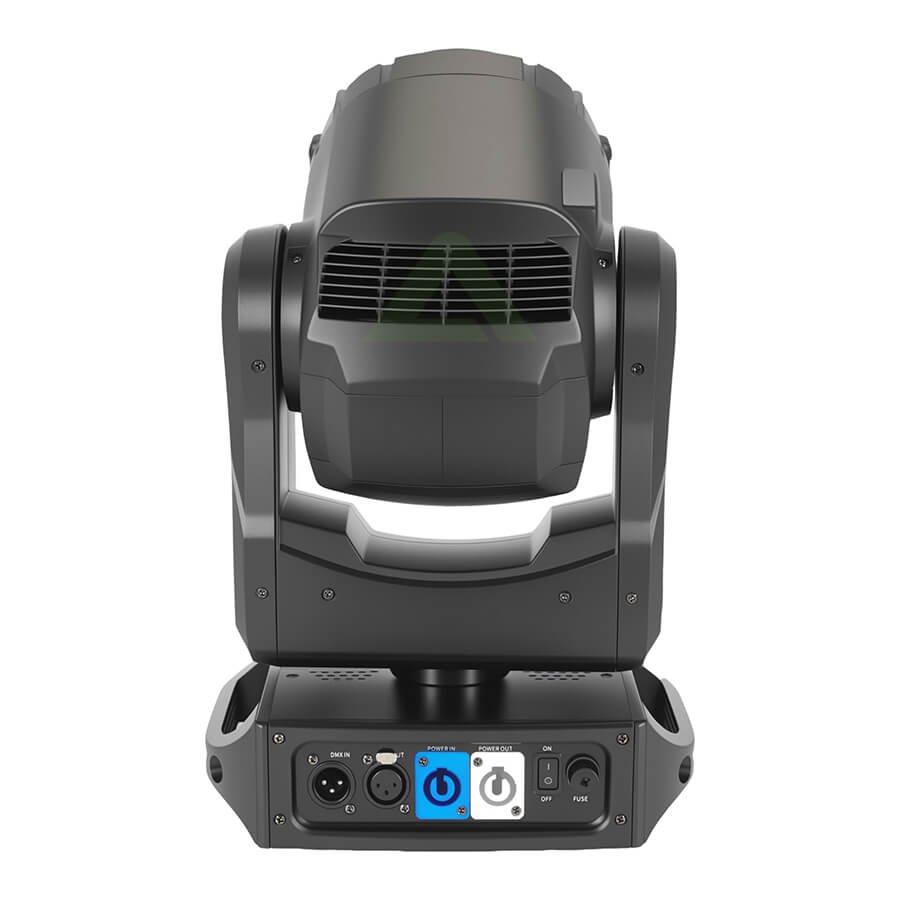

DMX data In/Out: XLR 3Pin (XLR 5Pin optional)
Display: LCD display with 5 buttons
PAN/TILT MOVEMENT
Pan: Max 540°, with 8 or 16 bit resolution
Tilt: Max 240°, with 8 or 16 bit resolution
Automatic Pan/Tilt correction
Pan/Tilt motors: 3 phase, fast and quiet movement
POWER SUPPLY
Power supply: AC100V-240V, 50/60Hz (auto-ranging)
Power consumption: Max. 170W
Auto switching power supply unit, PFC>0.95
COOLING
Cooling for head: forced air convection with 1 fan
Cooling for base: forced air convection with 2 fans
THERMAL MANAGEMENT
Thermal management system ensures long life of LED
Auto reduce brightness in case of overheating
RIGGING & MOUNTING
2pcs omega brackets with 1/4-turn quick fasteners
with double handles (left & right) for transportation
Four strong feet for better flat placement stability
ENVIRONMENT AND PHYSICAL
IP rating: IP20 for indoor use only
Environment temp: -20°C-40°C
Dimensions(mm): W260 x D185 x H370 (head horizontal)
Net weight: 4.5 kg (9.9lb)
ACCESSORIES
Power input cable included, 1.0mm2, length 1.2mtr
DMX cable not included, length 1.5mtr
Hanging omega bracket included (2pcs/pair)
Safety cable note included, length 0.65mtr
